Collection: Red Light Therapy Panels for Home

Six sizes, from the handheld FOCUS to the full-body ELITE, all with 7 wavelengths and lab-tested irradiance. Pick your size below, then try it at home for 60 days.

What's the Main Difference
Between the Panels?

The core technology (wavelengths, power density, safety) is the same in all RLT Home panels; the handheld FOCUS swaps 480 nm for 940 nm. Otherwise the primary difference is size and total coverage area, from the handheld FOCUS to the full-body ELITE.

How do I know what size I need?

  • Total Spectrum Focus: handheld and battery powered for the face, single joints and travel.
  • Total Spectrum Mini: small areas like hands, feet, face, or one joint at a time. Table-top stand included.
  • Total Spectrum Compact: medium areas like back, shoulders, hips or legs.
  • Total Spectrum Max: large areas like torso, thighs or abdomen; half the body standing.
  • Total Spectrum Ultra: full-body sessions standing or lying down, electric stand included.

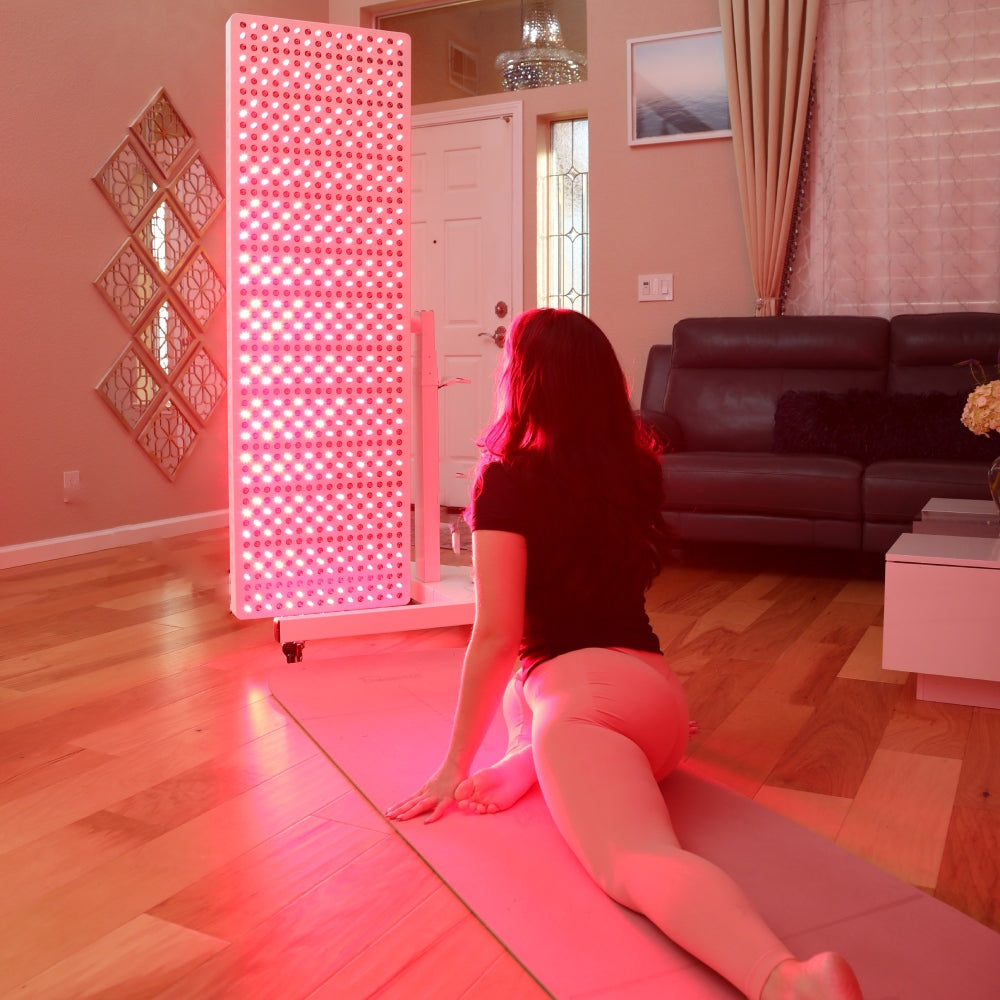

  • Total Spectrum Elite: the largest coverage, for home gyms, clinics and studios, electric stand included.

Not sure between two sizes? Pick the larger one if you plan full-body sessions more than twice a week, and the smaller one if you have one or two target areas. Every order includes a free personalised weekly plan written for your goals.

What every RLT Home panel has in common

  • Seven wavelengths in one array: 480, 630, 660, 810, 830, 850 and 1064 nm on the panels (the FOCUS carries 940 nm instead of 480 nm), with 56% of output at 810 nm and beyond. Each wavelength channel can be switched, dimmed and pulsed on its own.
  • Published irradiance: 98.7 to 121.6 mW/cm² at 6 inches on the panels, measured by spectrometer and verified by two independent labs. The figure for every model is in the comparison table below.
  • Safety testing: about 0.0 µT EMF at 6 inches and no flicker. RLT Home Total Spectrum devices are FDA-registered, 510(k)-exempt Class II general wellness products and carry CE and RoHS certifications.
  • Everything in the box: a stand (electric on the ULTRA and ELITE), eye protection, remote or touch control, and nine pre-built modes plus a custom mode.
  • Standard power: every size, including the ELITE, runs from a normal wall socket (AC 100 to 240 V) with country-specific plugs.
  • 60-day home trial and 3-year warranty on every panel, with no restocking fee.

How to choose a red light therapy panel

Four numbers separate a good panel from a weak one, and all four are published for every RLT Home model.

  1. Wavelengths. Research has explored red light around 630 to 660 nm for the skin surface and near-infrared around 810 to 1064 nm for deeper tissue. A panel that offers both, and lets you choose between them, covers more of the published research than a two-wavelength device.
  2. Irradiance at a stated distance. Ask for a spectrometer reading at 6 inches, not a solar-meter figure, and compare like for like. Higher irradiance means shorter sessions for the same dose.
  3. Coverage. Match the panel to the area you want to treat in one session. A larger panel is faster for full-body use; a small panel is easier to position for a joint or the face.
  4. Trial and warranty. A 60-day trial with no restocking fee and a 3-year warranty tells you the maker expects the panel to last and to be used.

For a wavelength-by-wavelength look at how RLT Home compares with seven other brands, see our brand comparison. For how to run your sessions, see the Total Spectrum usage guide.

Frequently asked questions

Which red light therapy panel is best for the face?
The FOCUS and MINI are the usual choices. The MINI covers the whole face from its table-top stand; the FOCUS is handheld and battery powered, so it suits travel and spot use.

Which panel is best for full-body use at home?
The ULTRA (480 LEDs) covers the full body standing or lying down and comes with an electric stand. The ELITE (864 LEDs) is wider, so it covers the body with less repositioning and suits shared spaces such as a home gym or clinic.

Do I need all seven wavelengths?
Not for every goal, which is why wavelength allocations have been pre-defined for you using real studies, in our pre-built modes. Studies have explored shorter red wavelengths for skin appearance and longer near-infrared wavelengths for muscle recovery and deeper tissue. Having all seven in one panel means you can follow the parameters the research used without buying a second device.

How far away should I stand, and for how long?
Most of our plans use 12 to 36 inches for 10 to 20 minutes per area, three to five times a week. Your free personalised plan sets the distance, time and mode for your goals, and the usage guide explains how to adjust them.

Do they all come with stands?
Yes. Each panel comes with a custom-designed stand included, with the larger models featuring electric stands for effortless positioning, standing or lying down. The handheld comes with a silicone hand strap.

Will these work with a normal power socket?
Yes. All Total Spectrum panels, including the Ultra and Elite, run from a standard wall socket without any compromise on performance, and accept AC 100 to 240 V.

Are RLT Home panels certified?
RLT Home Total Spectrum devices are FDA-registered, 510(k)-exempt Class II medical devices and carry CE and RoHS certifications. They are general wellness products and are not intended to diagnose, treat, cure or prevent any disease.

Ready to choose your panel?
Choose the panel that fits your life and start experiencing the benefits of red light therapy at home. Have questions? Chat live with an RLT Home expert now.

Total Spectrum Series

  • 7 Wavelength Patented Design Inspired from Human Clinical Trials.

  • Nothing Comes Close! 30 Degree Beam Angle + Privacy First.

  • 9 Pre-built Modes - Skin, Pain, Hair, Weight Loss, Brain & more to get you started.

A Total Spectrum Series Comparison

  FOCUS MINI COMPACT MAX ULTRA ELITE
# of LEDs 15 (22 chips) 72 216 360 480 864
Wavelength nms 633nm 660nm
810nm 830nm 850nm
940nm 1064nm
480nm
630nm 660nm
810nm 830nm 850nm
1064nm
480nm
630nm 660nm
810nm 830nm 850nm
1064nm
480nm
630nm 660nm
810nm 830nm 850nm
1064nm
480nm
630nm 660nm
810nm 830nm 850nm
1064nm
480nm
630nm 660nm
810nm 830nm 850nm
1064nm
Wavelength Density 633nm - 16.66%
660nm - 16.66%
810nm - 13.33%
830nm - 6.66%
850nm - 6.66%
940nm - 13.33%
1064nm - 26.66%
480nm - 6%
630nm - 19%
660nm - 19%
810nm - 19%
830nm - 14%
850nm - 9%
1064nm - 14%
480nm - 6%
630nm - 19%
660nm - 19%
810nm - 19%
830nm - 14%
850nm - 9%
1064nm - 14%
480nm - 6%
630nm - 19%
660nm - 19%
810nm - 19%
830nm - 14%
850nm - 9%
1064nm - 14%
480nm - 5%
630nm - 20%
660nm - 20%
810nm - 20%
830nm - 13%
850nm - 8%
1064nm - 14%
480nm - 6%
630nm - 19%
660nm - 19%
810nm - 19%
830nm - 14%
850nm - 9%
1064nm - 14%
LED Wattage 5W 5W 5W 5W 5W 5W
Power Consumption 10W 120W 280W 550W 850W 1540W
Voltage USB-C · DC 5V 2A (battery) AC 100-240V AC 100-240V AC 100-240V AC 100-240V AC 100-240V
Country-Specific
Power Plugs?
No - universal USB-C charger Yes Yes Yes Yes Yes
LED Type 3535 single and dual chip LED 3535 LED 3535 LED 3535 LED 3535 LED 3535 LED
Wavelengths 7 7 7 7 7 7
Irradiance (Solar power meter) - 8 inches:
170 mW/cm2
8 inches:
172 mW/cm2
8 inches:
172 mW/cm2
8 inches:
174 mW/cm2
8 inches:
179 mW/cm2
Irradiance (Spectrometer) 0 inches:
359 to 481 mW/cm2
3 inches:
115 mW/cm2
6 inches:
69 mW/cm2
6 inches:
98.7 mW/cm2
6 inches:
99.0 mW/cm2
6 inches:
100.53 mW/cm2
6 inches:
119.28 mW/cm2
6 inches:
121.62 mW/cm2
EMF ≈0.0μT EMF ≈0.0μT EMF ≈0.0μT EMF ≈0.0μT EMF ≈0.0μT EMF ≈0.0μT EMF
Flicker None None None None None None
FDA Registered & CE, RoHS Certified? Yes Yes Yes Yes Yes Yes
Pulsing? Yes Yes Yes Yes Yes Yes
Remote, Touch or Voice control? Touch Remote & Touch Remote & Touch Remote & Touch Touch & Voice Remote & Touch
Performance Modes 4 9 9 9 9 9
Pre-built Science Modes
5 Minute Miracle
Skin
Pain & Recovery
Deep & Brain


Full Power
Skin and Anti-Aging
Pain & Inflammation
Fat Burn & Weight Loss
Mental Health & Brain
Sleep
Acne
Hair Growth
Wound Healing
Custom Mode - Use Your Own Settings


Full Power
Skin and Anti-Aging
Pain & Inflammation
Fat Burn & Weight Loss
Mental Health & Brain
Sleep
Acne
Hair Growth
Wound Healing
Custom Mode - Use Your Own Settings


Full Power
Skin and Anti-Aging
Pain & Inflammation
Fat Burn & Weight Loss
Mental Health & Brain
Sleep
Acne
Hair Growth
Wound Healing
Custom Mode - Use Your Own Settings


Full Power
Skin and Anti-Aging
Pain & Inflammation
Fat Burn & Weight Loss
Mental Health & Brain
Sleep
Acne
Hair Growth
Wound Healing
Custom Mode - Use Your Own Settings


Full Power
Skin and Anti-Aging
Pain & Inflammation
Fat Burn & Weight Loss
Mental Health & Brain
Sleep
Acne
Hair Growth
Wound Healing
Custom Mode - Use Your Own Settings

Beam angle 30 degrees 30 degrees 30 degrees 30 degrees 15/ 30/ 60 deg mixed  30 degrees
Treatment area Targeted (Handheld) Small Medium Large Full Body Full Body
Device Size 140 x 82 x 35mm
5.5" x 3.2" x 1.4"
300 x 290 x 65mm
11.8" x 11.4" x 2.6
770 x 300 x 65mm
30.3" x 11.8" x 2.6"
1250 x 300 x 65mm
49.2" x 11.8" x 2.6"
1635 x 300 x 75mm
64.3" x 11.8" x 3"
1650 x 520 x 60mm
65" x 20.5" x 2.4"
Device Weight 0.52 kg / 1.15 lbs 4 kg / 8.8 lbs 10 kg / 22 lbs 14 kg / 30.8 lbs 18 kg / 39.6 lbs 39 kg / 86 lbs
Stand provided? No - Handheld with silicone strap included Yes Yes Yes Yes - Electric Horizontal + Vertical Stand Included Yes - Electric Horizontal + Vertical Stand Included
Reading Friendly Eye Protection Goggles provided? Blackout goggles only Yes Yes Yes Yes Yes
Warranty 1 year 3 years 3 years 3 years 3 years 3 years
Returns from date of receiving the product 60 days 60 days 60 days 60 days 60 days 60 days
